Binder Jetting (BJT)

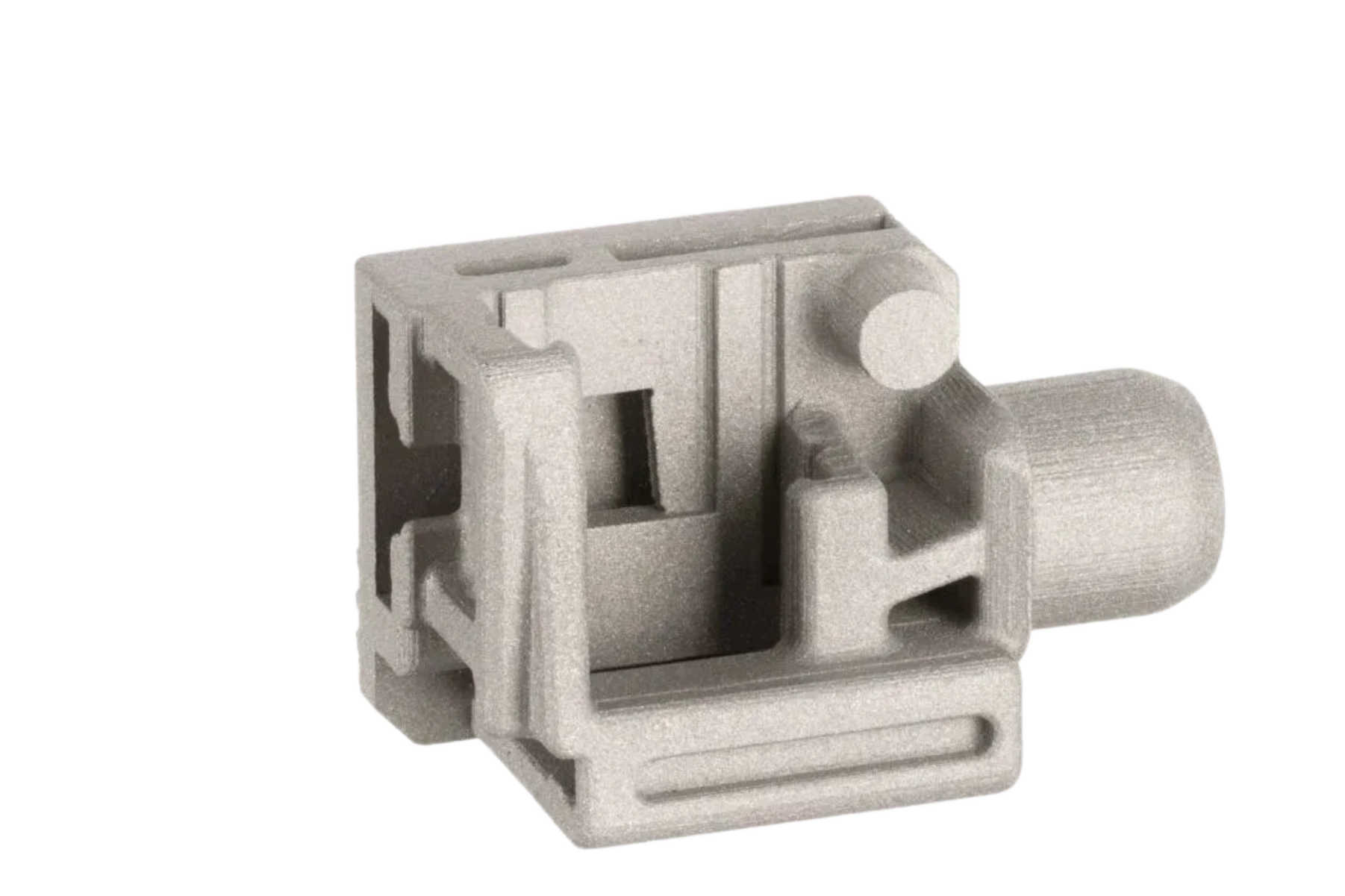

Standard Processed with a semi-matte finish and rough surface, parts media blasted after sintering

Binder Jetting

Yield Strength (ASTM E8M)
660±40 MPa

Ultimate Tensile Strength (ASTM E8M)
912±35 MPa

Elongation at break (ASTM E8M)
5.9±2 %

Hardness (ASTM E18)
26.4±1 HRC

Density (ASTM B311)
7.5-7.66 g/cc

Material Highlights
Corrosion resistance, Easily machined and polished, High levels of strength and hardness, Magnetic

Applications
Fasteners, Mounting Brackets, Chemical processing, Pump components, Jigs and fixtures

Bounding Box Max
127 × 127 × 76.2 mm

Bounding Box Min
15 × 15 × 3 mm

The bounding box is a 3D imaginary outline of a box that encloses the smallest area occupied by your model. Your model must be within the minimum and maximum bounding box sizes. If the size of the model is close to the maximum bounding box, then the printing orientation will be restricted.

Supported Wall Thickness Min
0.8 mm

Unsupported Wall Thickness Min
1.0 mm

A supported wall is connected at least on two sides of the wall, while an unsupported wall is connected only on one side of the wall. Walls that do not meet the minimum requirements may not survive printing and cleaning processes. Additionally, models may still be rejected based on the wall geometry of the model. Please consider the size of your model and reinforce the walls or add support structures as needed as minimum guidelines will not always be adequate for large models.

Supported Wires Min
0.8 mm

Unsupported Wires Min
1.0 mm

A wire is a circular, rectangular or even triangular feature that is thinner in its unconnected directions than its length. A supported wire is connected at least on two sides of the model, while an unsupported wire is connected on one side of the model. Wires that do not meet the minimum requirements may not survive printing and cleaning processes. Additionally, models may still be rejected based on the wire geometry of the model. Please consider the size of your model and reinforce the wires or add support structures as needed as minimum guidelines will not always be adequate for large models.

Details Min Embossed
1.0 mm high & wide

Details Min Engraved
1.0 mm deep & wide

For text, the ratio between width and depth, should be 1:1 and sans-serif fonts are preferred for line weight consistency.

Single Escape Hole Diameter (Min)
5.0 mm

Multiple Escape Hole Diameter (Min)
2.54 mm

Escape holes are necessary to empty the support material of a hollow model. Two escape holes at the opposite ends of the model is optimal for the support removal process. Please consider the size of your model and make the escape holes bigger or add more escape holes as needed as minimum guidelines will not always be adequate for large models.

**A single escape hole at the end of a cavity will not allow material in the corners near the escape hole to fully escape. So we recommend multiple escape holes at both ends of the cavity.**

Min
0.3 mm

Clearance is the space between two individual parts in a model. If the space among the individual parts do not meet the minimum clearance, then parts can fuse together or can be difficult to clean. This is important for movable pieces like hinges, gears, etc.

Interlocking
No

Enclosed
No

Accuracy ± 5 %

For example: a product with dimensions of 50 x 50 x 100 mm can be 0.05*100 mm = 5 mm bigger or smaller in any direction.
